Description

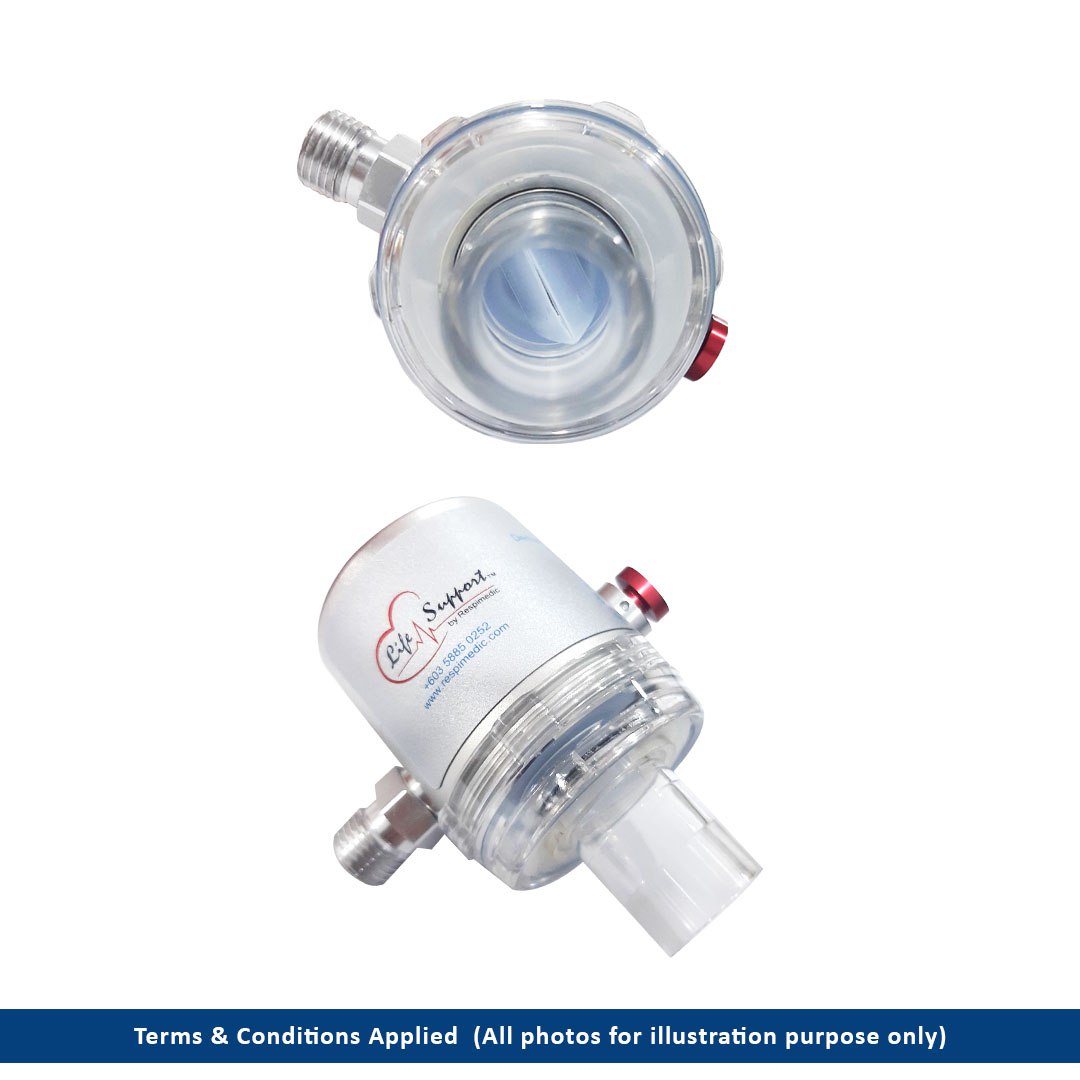

LifeOxy Demand Valve Resuscitator

LifeOxy is designed to meet the varying requirements of emergency medical services and rescue personnel. LifeOxy Resuscitator comes with a pressure relief system and audible alarm as well a manual ventilation button conveniently located on the front of the resuscitator.

The position of the manual ventilation button assists in maintaining the patient’s airway by allowing both hands to be used to affect a secure, superior mask-to-face seal (without the need for cumbersome trigger levers or inconveniently located, top-mounted manual buttons). The manual ventilation flow rate is fixed at 40 L/min in line with the current guidelines for resuscitation. During spontaneous respirations, the LifeOxy Demand valve resuscitator is designed to provide 100% oxygen to the patient with minimal inspiratory effort. The oxygen demand flow is controlled by the patient’s inspiratory effort with a minimum peak flow rate of 100 lpm to accommodate the patient’s respiratory distress situation.

The LifeOxy demand valve resuscitator provides a fast, simple, and effective means to ventilate the non-breathing patient and to provide 100% oxygen to patients in respiratory distress.

Key Features

• The lightweight demand valve 230gram
• 360 degree patient valve swivel housing
• Easily disassembled for cleaning
• 2 micron mesh filter fitted at the gas inlet
• Comes with a Manual Ventilation Assist Button
• HMEF prevents cross contamination between patient and device
• Available in different types of connections – DISS, MK4, CIG

Specifications

• Manual Test Flowrate: 40-60LPM
• Spontaneous Trigger Sensitivity: -5cm H2O @ 30LPM / -7cm H2O @ 80LPM / -10cm H2O @ 90LPM
• Maximum Flow: >100LPM
• Input Pressure: 50psi
• Safety Relief Valve: 50cmH2O
• Operating Temperature: -18C~+50C
• Storage Temperature: -40C~+60C
• RH for Storage and Operating Space: 15%~95%
• Input Connection: 9/16″ DISS
• Patient Valve Dead Space: 8ml
• Weight: 0.80kg
• Patient Connector: 22mm OD

Note: Tested with cylinder pressure greater than 6Mpa system flowrate capacity greater than 100LPM
