Description

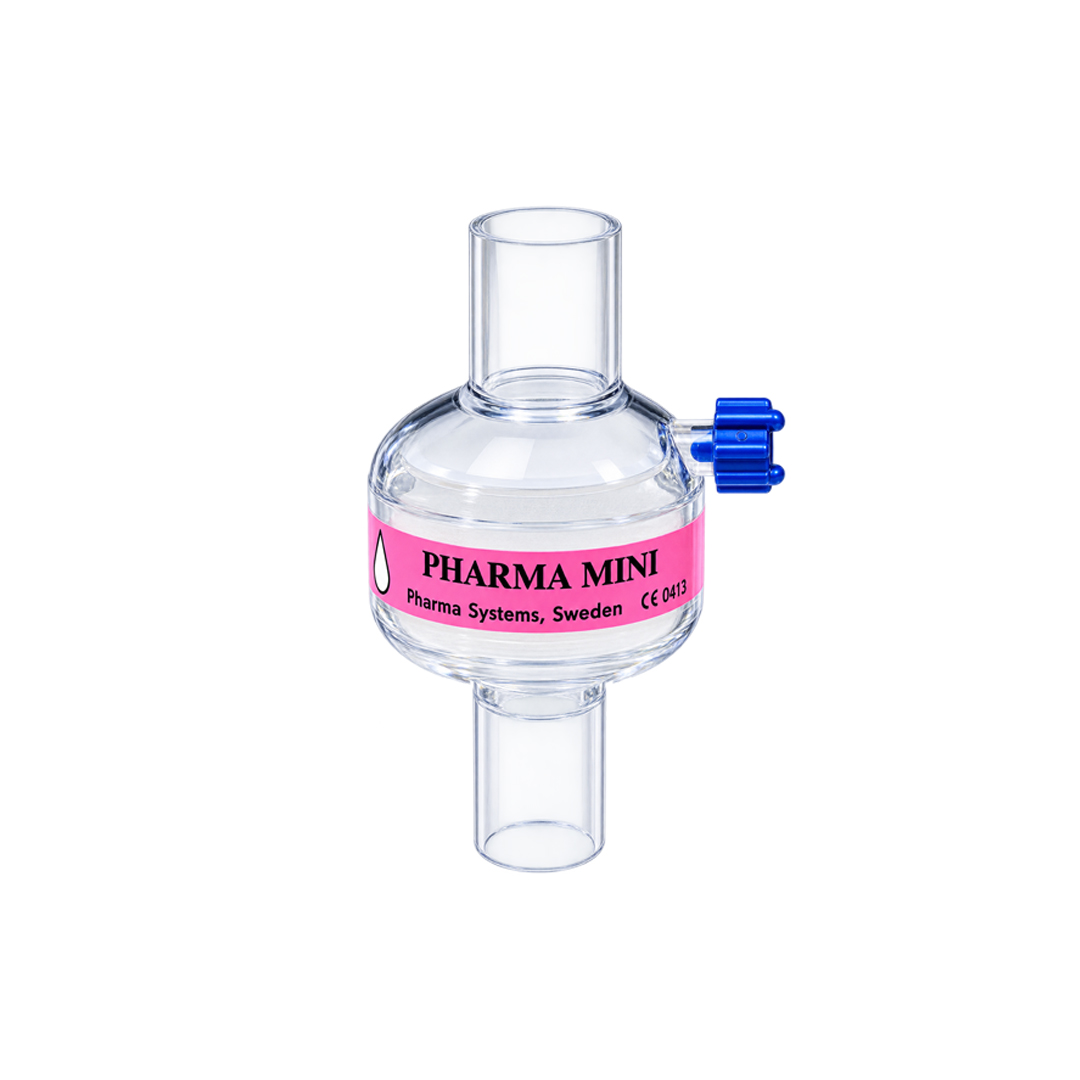

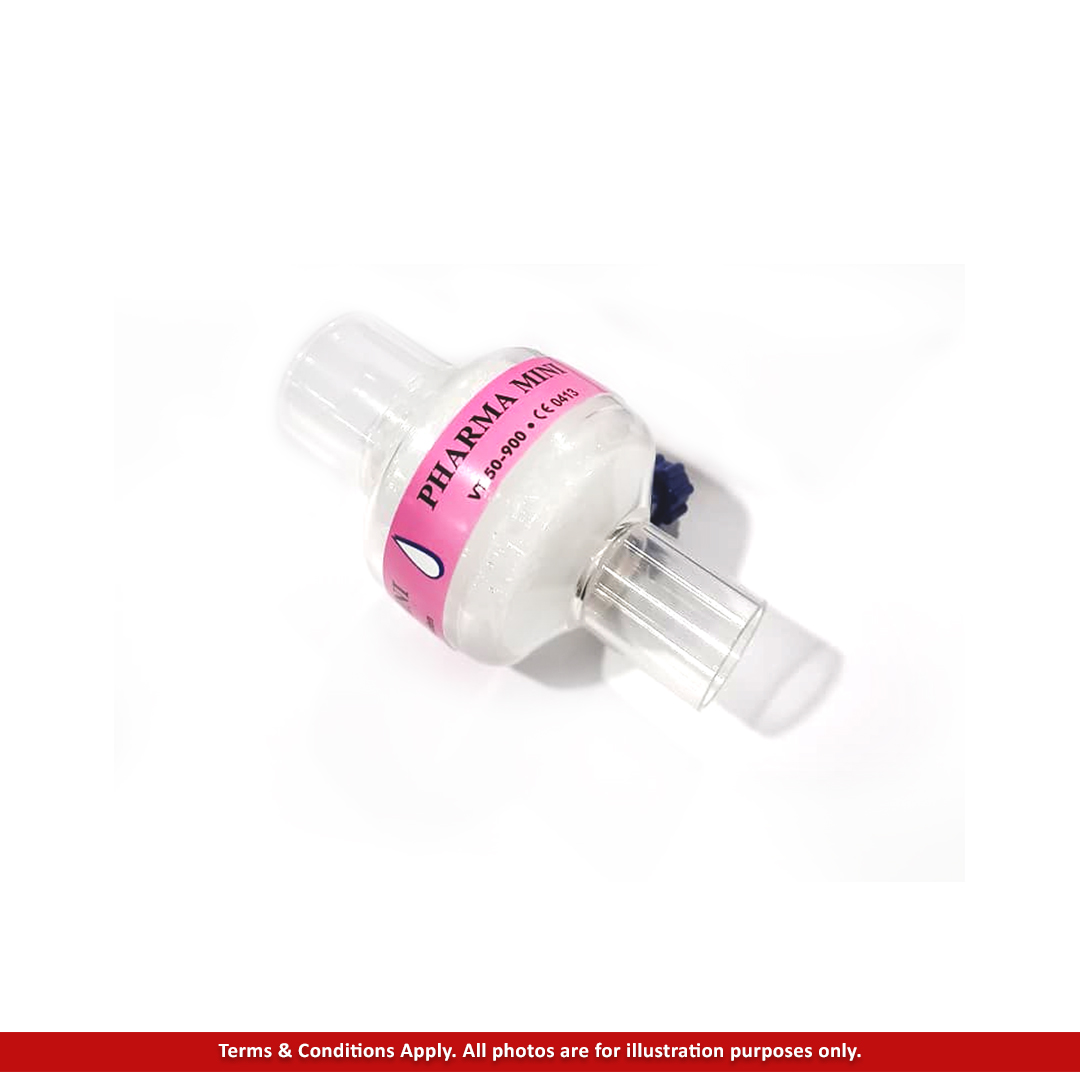

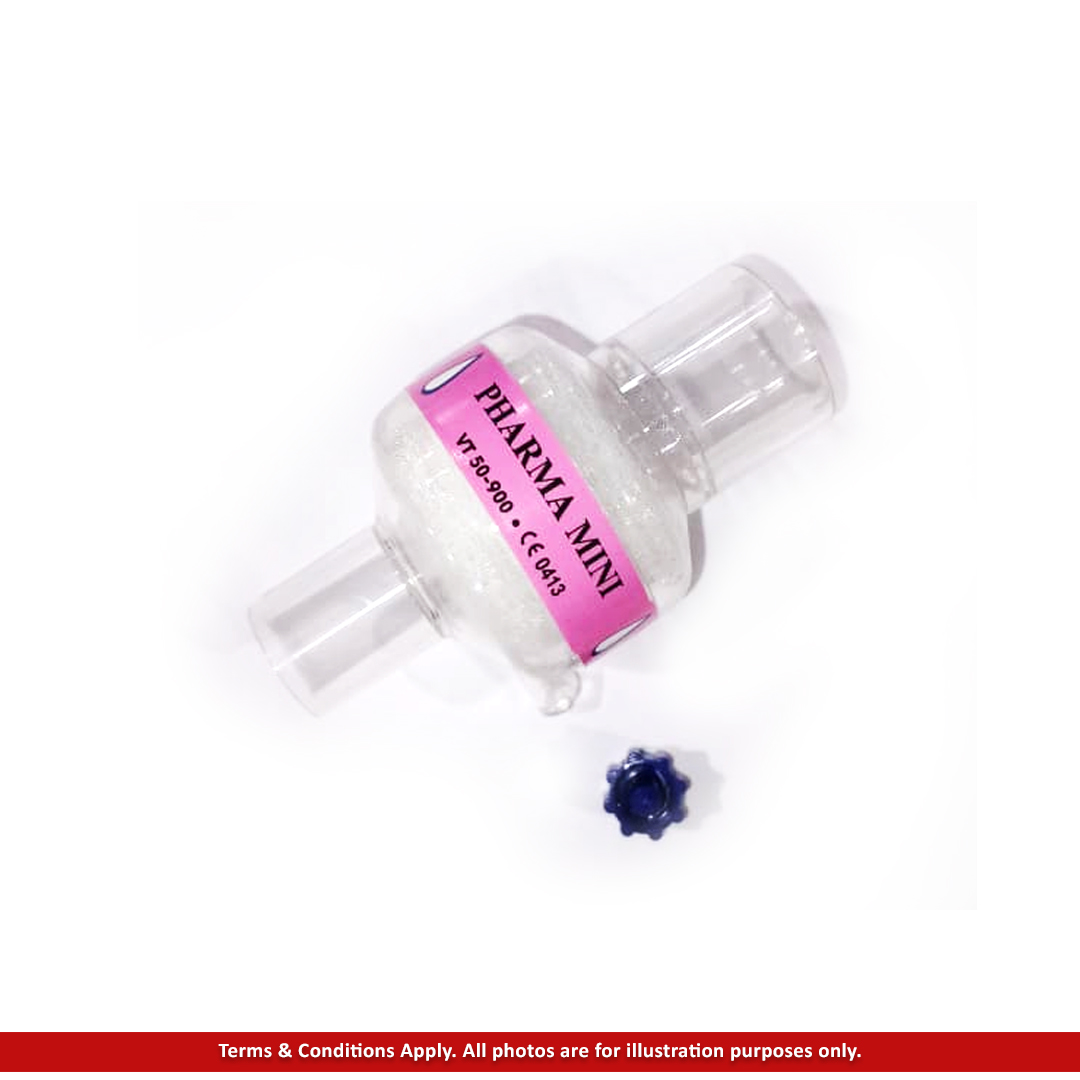

Pharma Mini Port (Heat and moisture exchanger combined with bacterial/viral filter for smaller tidal volumes)

Features:

• Suitable for transport ventilator, ICU ventilator and GA machine.
• >99.99% effective bacterial/ viral Filter to prevent the spread of infectious particles into thecircuits, machines and manual resuscitators.
• Wide range of usage from pediatric to adult patients.
• Efficient humidification prevents moisture from collecting in the tubing.
• Reduces potential colonization into the circuit and equipment.
• Reduces the risk of cross-infection among patients and hospital staff.
• Eliminates the need for water traps and their maintenance.
• Dry and filtered gas prevent sampling tube and analyzers from moisture and colonization.
• Initial set-up is simple, quick and secure.
• Different options ensure the right choice of device.
• Should be changed every 24 hours or more frequently if resistance increases.
• Tested by Nelson Laboratories Inc. USA
• Tested with bacteria/ virus smaller than Corona, HIV & Hepatitis C (refer to test data for details)
• Have a ” Change on day” label on each product. (Mon, Tue, Wed, Thu, Fri, Sat, Sun)

Specifications:

• Tidal volume (ml): 50-900 ml
• Dead space (ml): 23 ml
• Weight (g): 15 g
• Housing: Styrolux 656C

Resistance cm H2O

• 20LPM: 1,5

Moisture Return

• At VT 250 ml: 31,8

Filtration Efficiency

• Bacterial: >99,99%
• Viral: >99,99%
• Filtration Medium: Polypropylene Fibres
• Filtration Method: Mechanical and Electrostatic

Fittings: 22mm Male/ 15mm Female; 15mm Male

Packing: 500/Carton or 100/Box

Packing: Clinically clean packing (Sterile packing at additional cost)
